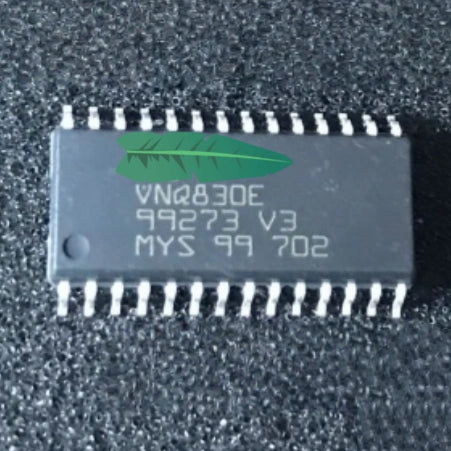

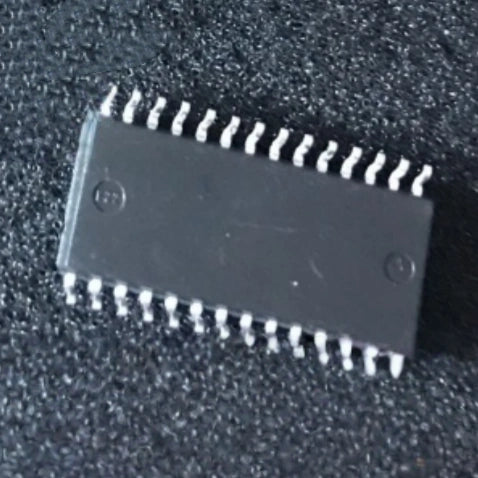

VNQ830E Quad High-Side Driver IC for Automotive Turn Signal / Lighting Body Control Modules
The VNQ830E is a quad channel high-side driver integrated circuit manufactured using advanced VIPower M0-3 technology, specifically designed for automotive body control and lighting applications.
This component is a common failure point in vehicle body computer modules, particularly in turn signal, taillight, and other exterior lighting control circuits.
The device integrates four independent 160 mΩ power MOSFETs in a compact PowerSSO-24 package, providing a space-efficient solution for dense PCB layouts in modern vehicles.
Typical symptoms of a failing VNQ830E include turn signals that fail to activate, intermittent flashing, complete loss of one or more lighting functions, or diagnostic trouble codes related to exterior lighting circuits.
Each channel is capable of delivering up to 7A of current, making this driver suitable for controlling various lighting loads including incandescent bulbs and LED modules.
The chip features extensive built-in protection mechanisms including undervoltage shutdown, overvoltage clamp, overtemperature shutdown, and current limitation with thermal shutdown.
An integrated current sense output provides analog feedback for each channel, enabling precise diagnostics and real-time monitoring by the control module.
Operating across a wide supply voltage range from 5.5V to 36V, this driver is fully compatible with 12V vehicle electrical systems and can withstand load dump conditions up to 40V.
The device also includes a very low standby current of less than 1 µA, ensuring minimal battery drain when the vehicle is parked.
Its advanced protection features and diagnostic capabilities make it a popular choice in automotive body control modules, where reliability and fault detection are essential.
This product is a high-quality replacement component, ideal for automotive electronics repair professionals and technicians specializing in body control module restorations and lighting system repairs.
