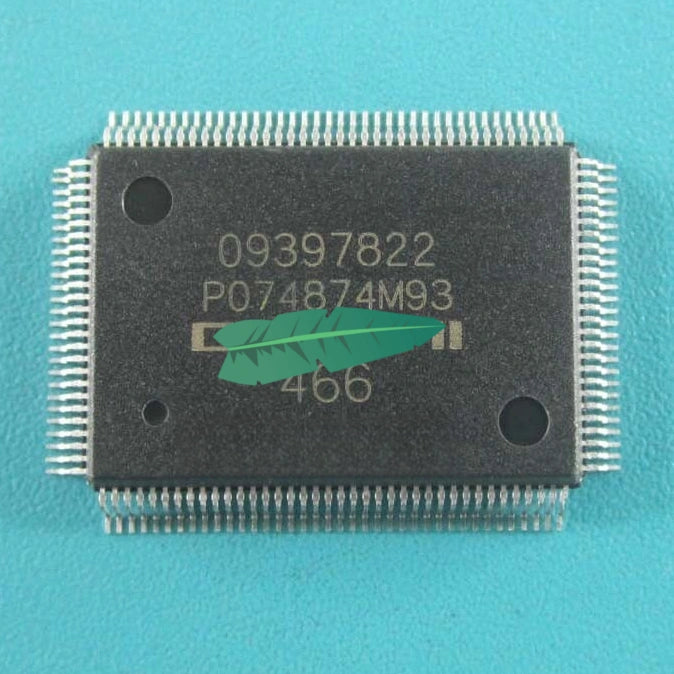

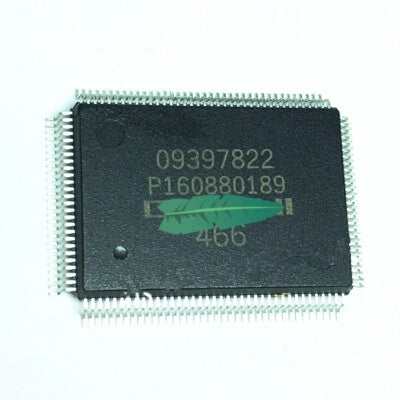

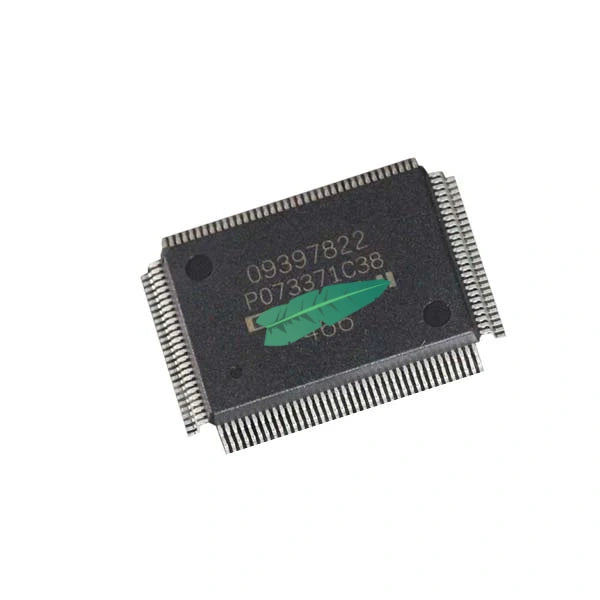

09397822 Automotive Ignition Driver IC – Engine Control Unit Power Stage

09397822 is a high‑performance ignition driver IC designed for automotive engine control units (ECUs).

This integrated circuit provides a robust power stage capable of driving external ignition coils directly. It supports high‑side or low‑side configurations, making it versatile for various ignition system topologies.

Key features include a wide operating temperature range from –40°C to +150°C, suitable for under‑hood applications. Built‑in overcurrent and overtemperature protection ensure reliable operation under harsh conditions. The device also integrates ESD protection (>8kV HBM) to withstand electrostatic discharges during assembly and service.

With a typical output current of 10A and fast switching characteristics (rise/fall time <200ns), the 09397822 minimizes power loss and improves ignition timing accuracy. Its compact surface‑mount package (e.g., TO‑252 or similar) saves PCB space while maintaining excellent thermal dissipation.

This component is fully compliant with AEC‑Q100 automotive qualification standards, guaranteeing long‑term durability. Ideal for aftermarket ECUs, ignition modules, and engine management system repairs.
