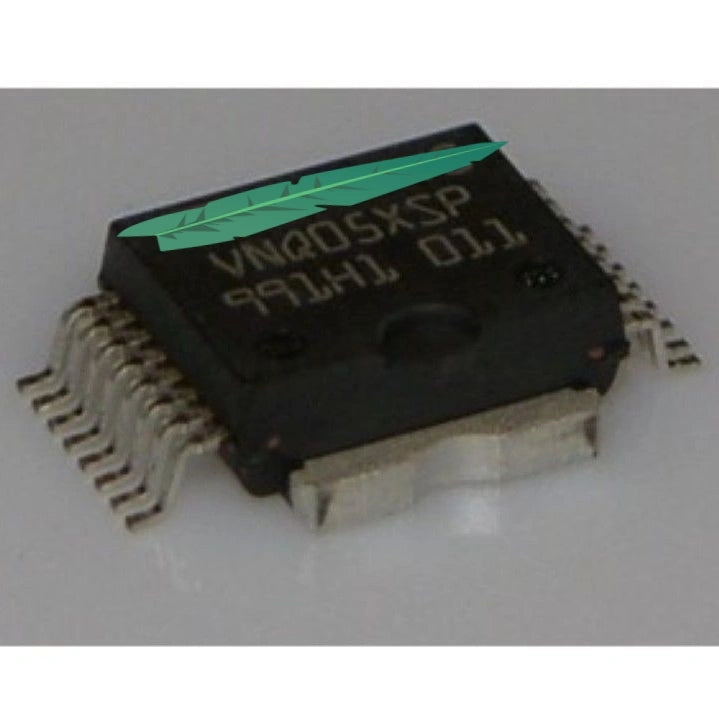

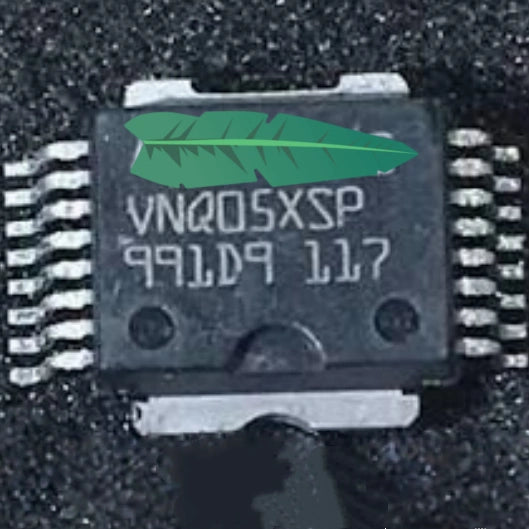

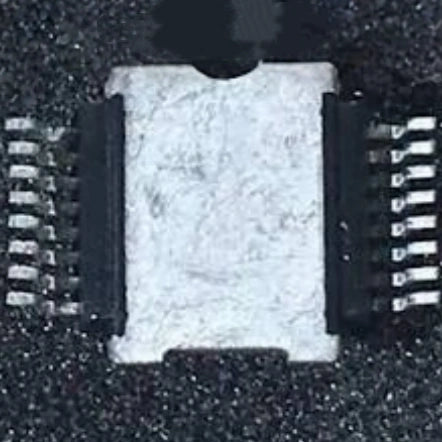

VNQ05XSP Quad-Channel High-Side Driver IC - 5A Automotive Power Switch with Current Sense
VNQ05XSP Quad High-Side Smart Power Switch for Automotive Lighting and Body Control
This quad-channel high-side driver is a monolithic device designed using advanced VIPower M0-3 technology, specifically intended for automotive applications requiring multiple load driving capabilities . It provides a robust and highly integrated solution for controlling lamps, relays, and solenoids in modern vehicle electrical systems .
Quad-Channel High-Side Architecture
The VNQ05XSP features four independent high-side channels, each capable of delivering up to 5A of continuous output current . This makes it ideal for driving multiple loads simultaneously, such as headlights, taillights, turn indicators, and interior lighting systems . The 1:1 input-to-output ratio simplifies control logic design in body control modules.
Wide Operating Voltage Range
Supporting a broad supply voltage from 5.5V to 36V, this device is fully compatible with both 12V and 24V automotive electrical architectures . The integrated overvoltage clamp protects the device against low energy voltage spikes, ensuring stable operation in the harsh automotive electrical environment .
Low On-Resistance for High Efficiency
With a typical on-state resistance (RDS(ON)) of just 110mΩ per channel, the VNQ05XSP minimizes power dissipation and heat generation during operation . The maximum power dissipation rating of 78W supports demanding continuous load conditions across the full automotive temperature range .
Multiplexed Current Sense Diagnosis
A key feature of this driver IC is the multiplexed analog current sense output, which delivers a current proportional to the selected output current . The SenseEnable pin allows multiple VNQ05XSP devices to share the same current sense line, providing real-time load monitoring and fault detection capabilities .
Comprehensive Protection Suite
Designed for maximum reliability, the VNQ05XSP integrates multiple protection features: current limitation, overtemperature shutdown with auto-restart, undervoltage shutdown, and overvoltage protection . It also provides protection against loss of ground and loss of VCC, with reverse battery protection capability for enhanced system safety .
Automotive-Grade Reliability
Fully qualified for operation from -40°C to +150°C junction temperature, this device is AEC-Q100 qualified and delivers reliable performance under extreme under-hood conditions . Its CMOS-compatible inputs and very low stand-by power dissipation make it suitable for modern energy-efficient vehicle designs .
