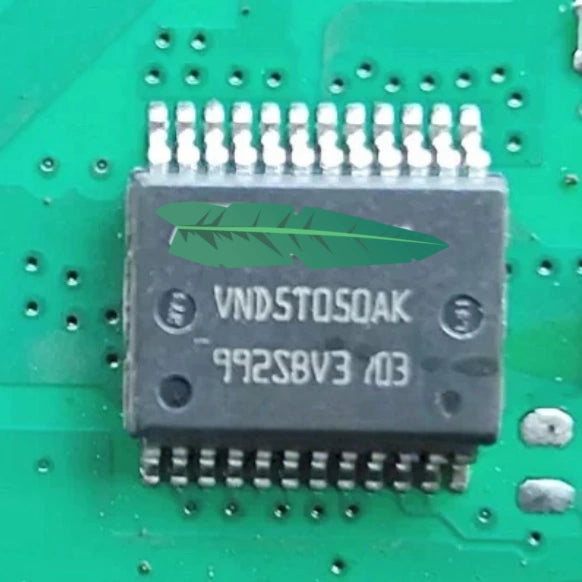

VND5T050AK Dual High-Side Driver IC for Automotive Body / Engine Control Modules

The VND5T050AK is a dual high-side driver integrated circuit manufactured using advanced VIPower M0-5 technology, specifically designed for automotive applications.

This component is a common failure point in vehicle body and engine control modules, particularly in circuits driving high-current loads such as fuel pumps, injectors, solenoids, and lighting.

The device integrates two independent 5 mΩ power MOSFETs in a compact PowerSSO-24 package, providing an efficient and space-saving solution for dense PCB layouts.

Typical symptoms of a failing VND5T050AK include intermittent load operation, complete loss of function in controlled devices, or diagnostic trouble codes related to driver circuits.

Each channel is capable of delivering up to 53A of current, making this driver suitable for controlling demanding automotive loads including fuel pumps, glow plugs, and heater circuits.

The chip features comprehensive built-in protection mechanisms including overcurrent shutdown, overtemperature shutdown with hysteresis, and load dump voltage protection.

An integrated current sense output provides analog feedback for each channel, enabling precise diagnostics and real-time monitoring by the control module.

Operating across a wide supply voltage range from 4.5V to 28V, this driver is fully compatible with 12V and 24V vehicle electrical systems.

The device also features a very low standby current of less than 2 µA, ensuring minimal battery drain when the vehicle is parked.

Its advanced protection features and high current capability make it a popular choice in automotive power distribution and body control applications where reliability is essential.

This product is a high-quality replacement component, ideal for automotive electronics repair professionals and technicians specializing in engine and body control module restorations.
