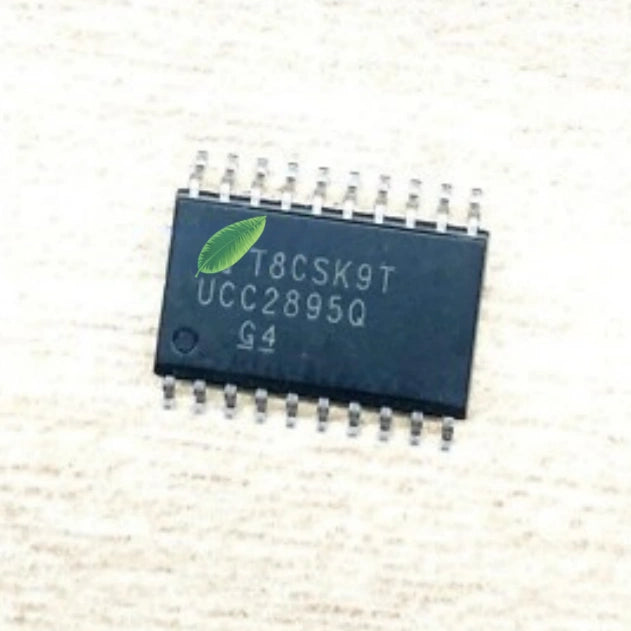

UCC2895Q Phase-Shifted Full-Bridge PWM Controller - 1MHz DC-DC Converter for EV Power Systems
UCC2895Q Automotive-Grade Phase-Shifted Full-Bridge PWM Controller for High-Efficiency Power Conversion
This advanced pulse-width modulation (PWM) controller is specifically designed to implement phase-shifted full-bridge power stages in high-efficiency DC-DC converters. By enabling zero-voltage switching (ZVS) across a wide load range, it significantly reduces switching losses and electromagnetic interference (EMI), making it a preferred choice for electric vehicle (EV) and hybrid electric vehicle (HEV) power systems.
Phase-Shifted Full-Bridge Topology for ZVS Operation
The UCC2895Q controls a full-bridge power stage by phase-shifting the switching signals of its two half-bridges. This technique allows the output capacitance of the MOSFETs to discharge before turn-on, achieving ZVS and minimizing switching losses . The result is higher efficiency, reduced heat dissipation, and improved reliability in high-power applications such as EV onboard chargers and auxiliary power modules .
Wide Frequency Range and Flexible Control Modes
Supporting programmable switching frequencies up to 1MHz, the device enables the use of smaller transformers and filters, reducing overall system size and cost . It offers three control modes—voltage-mode, peak current-mode, and average current-mode—with programmable slope compensation to suit various converter topologies . A high-bandwidth error amplifier (7MHz) ensures fast transient response and precise output regulation .
Comprehensive Protection and Soft-Start Features
The UCC2895Q includes a closed-loop soft-start function for controlled power-up sequencing, preventing inrush current and overshoot . Additional protection features include undervoltage lockout (UVLO), cycle-by-cycle current limiting with hiccup-mode protection, and bidirectional oscillator synchronization for noise-sensitive designs . These safeguards ensure robust performance under fault conditions .
Low Quiescent Current and Automotive-Grade Quality
Built on an advanced BCDMOS process, the controller consumes only 5mA typical operating current at 500kHz and 150µA during UVLO startup . Fully qualified to AEC-Q100 Grade 1 standards, it operates reliably across the -40°C to +125°C ambient temperature range, meeting the stringent requirements of automotive powertrain applications .
Compact PLCC-20 Package
Housed in a 20-pin PLCC package, the device supports automated surface-mount assembly and offers a compact footprint for dense power electronics layouts . Its green, RoHS-compliant design aligns with modern environmental standards .
