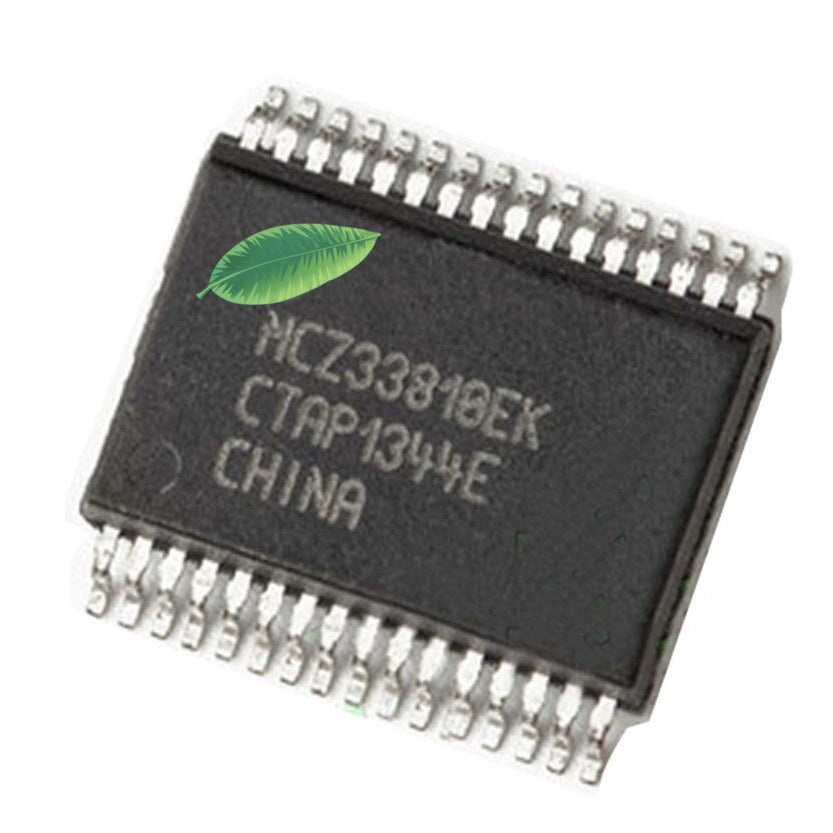

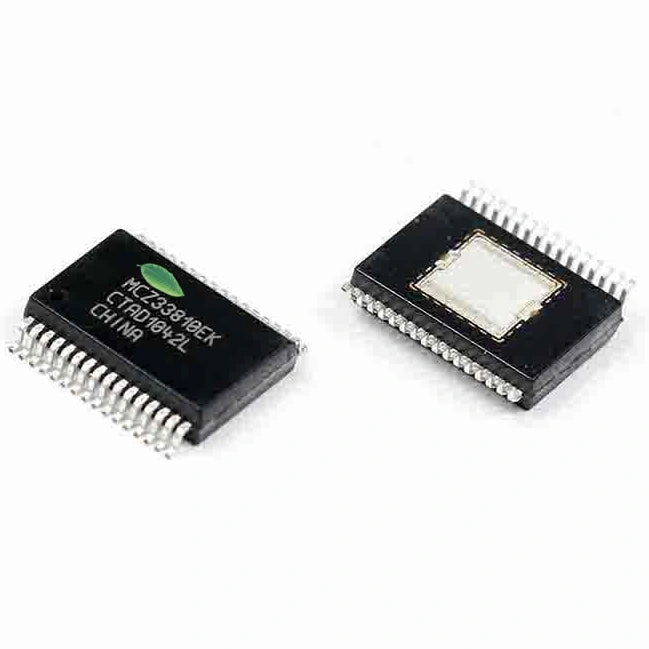

MCZ33810EK – Engine Control Unit Power Management IC for Automotive ECU, 8-Channel Driver

The MCZ33810EK is an automotive power management IC designed for engine control units (ECUs).
It integrates eight independent low-side drivers for controlling fuel injectors, solenoids, and relays.
This chip also includes two high-side drivers for powering sensors and actuators in engine systems.

The device features programmable PWM control and precision timing for fuel injection events.
It provides extensive fault detection including open-load, short-to-ground, and short-to-battery conditions.
Built-in overcurrent shutdown and overtemperature protection ensure reliable operation under stress.

Diagnostic feedback is available via a serial peripheral interface (SPI) for real-time monitoring.
The MCZ33810EK operates from 5.5V to 28V, making it suitable for 12V and 24V vehicle systems.
It includes a standby mode with very low quiescent current to minimize battery drain.

This power IC is optimized for gasoline direct injection and diesel common rail systems.
It reduces external component count by integrating pre-drivers and protection circuitry.
Operating temperature range spans -40°C to +125°C for under-hood applications.

Use the MCZ33810EK for automotive aftermarket ECU repairs or new engine control module production.
It improves system accuracy and reliability compared to discrete driver designs.
