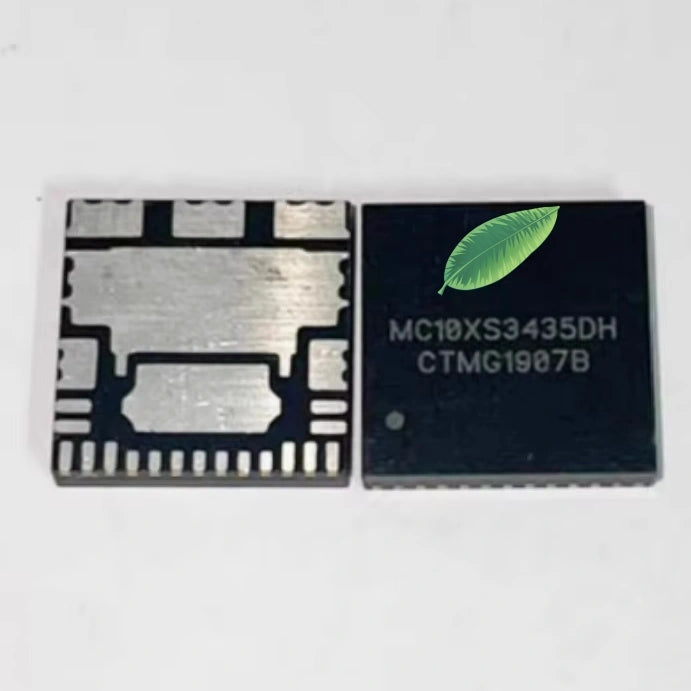

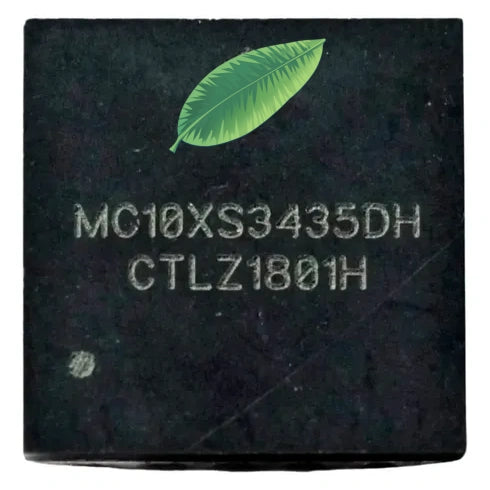

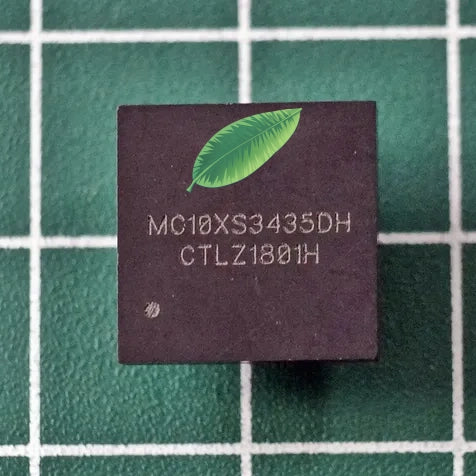

MC10XS3435DH Power Distribution Switch IC for Automotive ECU – High-Side Driver for Engine Control Boards
MC10XS3435DH is a high-side power distribution switch IC commonly used in automotive engine control units (ECUs).
It is a frequently replaced wear-and-tear component due to its role in protecting downstream circuits from overloads and shorts.
The chip integrates four independent high-side power switches, each capable of driving resistive, capacitive, and inductive loads.
Typical applications include powering sensors, solenoids, lamps, valves, and small motors inside the engine compartment.
Each output channel features precise current limiting, preventing damage during fault conditions such as short to ground.
Built-in overtemperature protection shuts down individual channels when excessive heat is detected.
Open-load detection and short-circuit reporting help technicians quickly identify failed external components.
The MC10XS3435DH communicates status back to the main microcontroller via a standard SPI interface.
This allows for real-time diagnostics and intelligent power management within the ECU.
Input voltage range covers typical car battery variations from 6V to 28V, withstanding load dump transients.
Very low on-resistance per channel minimizes power loss and heat generation during normal operation.
This device comes in a robust surface-mount package suitable for harsh under-hood conditions.
It is an ideal replacement part for repairing common power distribution failures in European and American vehicle ECUs.
Operating temperature range spans -40°C to +125°C, ensuring reliable performance in extreme environments.
