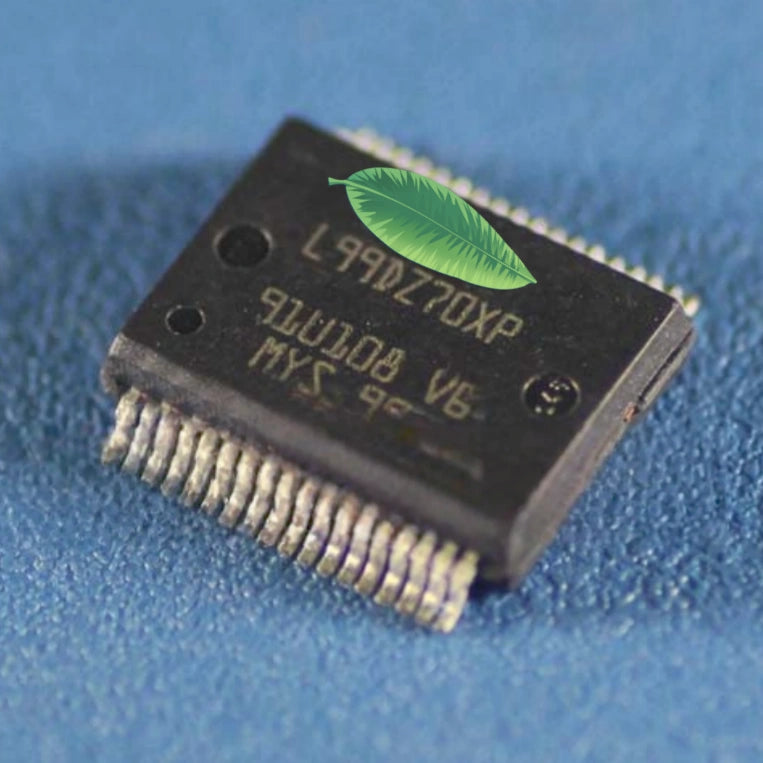

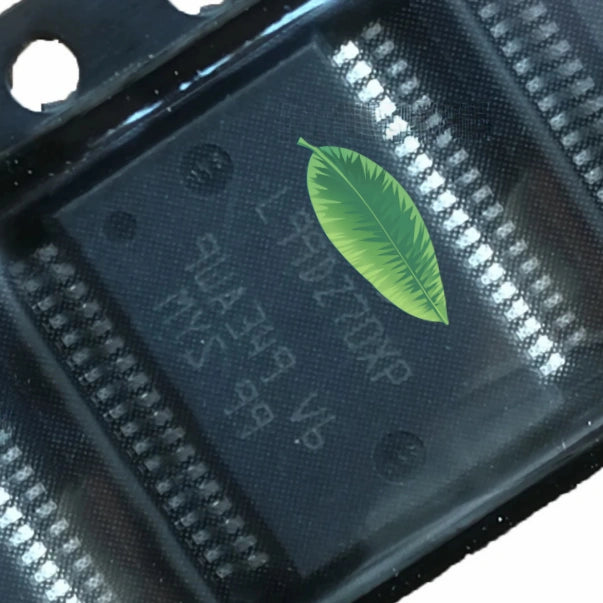

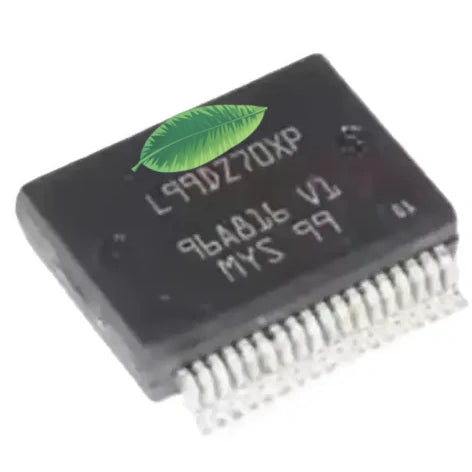

L99DZ70XP – Automotive Door Module Internal Fault Chip, High-Side Driver for Car Door Electronics

The L99DZ70XP is specifically designed for automotive door module internal fault handling.
It integrates multiple high-side drivers and a LIN transceiver for body electronics.
This chip is ideal for controlling door lock motors, mirror folding actuators, and window lift systems.

It provides real-time diagnostic feedback including short circuit, over-temperature, and open load detection.
The device supports low-power standby mode to reduce battery drain when the vehicle is off.
Built-in protection features include overcurrent shutdown and load dump robustness up to 40V.

Compatible with 12V automotive systems, it operates from -40°C to +150°C junction temperature.
The L99DZ70XP simplifies PCB design by reducing external discrete components.
It is optimized for electric control units (ECUs) inside car doors where space and reliability are critical.

Use this chip to replace multiple relays and discrete drivers, improving system MTBF.
It is suitable for aftermarket door module repairs or new ECU production for passenger cars and light trucks.
