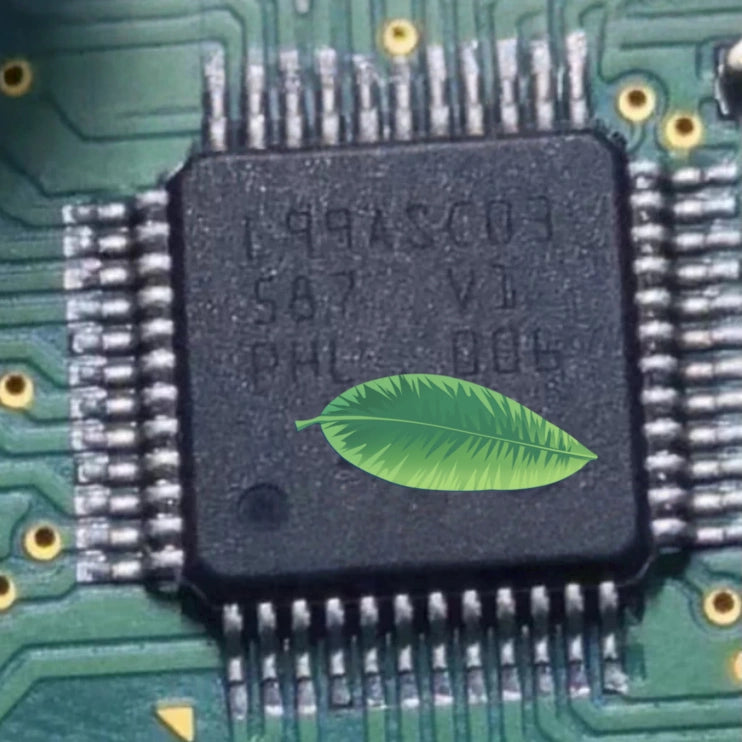

L99ASC03 Three-Phase BLDC Motor Pre-Driver IC – Sensorless Control for Automotive Transmission & Mechatronic Systems
The L99ASC03 is a multifunctional system IC purpose-built for advanced three-phase motor control in automotive powertrain and transmission applications .
It operates as a pre-driver for six external N-channel MOSFETs in a bridge configuration, enabling precise and efficient control of brushless DC motors .
The device integrates a 5 V low-drop voltage regulator capable of delivering up to 200 mA in continuous mode, providing a stable power supply for an external microcontroller .
This chip supports sensorless motor control through its advanced BEMF (Back Electromotive Force) detection IP, significantly simplifying system design and reducing external component count .
The integrated Serial Peripheral Interface (SPI) allows full configurability of device parameters, operating modes, and facilitates comprehensive diagnostic readouts .
For demanding automotive environments, it includes a window watchdog and fail-safe functionality to ensure system reliability and safe operation under fault conditions .
A two-stage charge pump enables 100% duty cycle operation, while PWM switching up to 80 kHz offers flexibility for various motor control strategies .
Built-in protection features include programmable overcurrent protection, drain-source monitoring, and open-load detection, safeguarding both the IC and connected loads .
The analog multiplexer output allows for monitoring of external supply voltages and internal junction temperature, enabling real-time system health tracking .
With a very low standby current consumption of just 15 µA typical, it is an excellent choice for power-sensitive automotive modules .
Housed in a compact TQFP48 7x7 mm package with an exposed pad for thermal management, it is designed for space-constrained PCB layouts .
