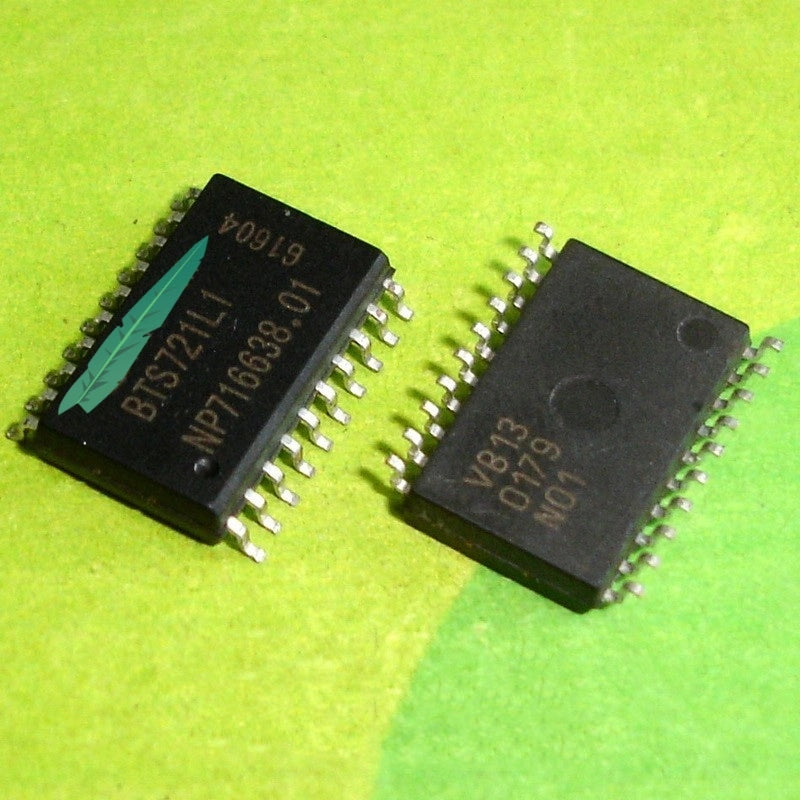

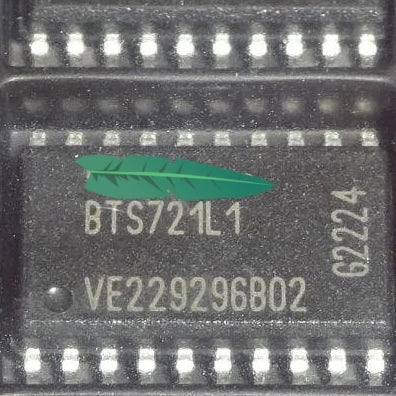

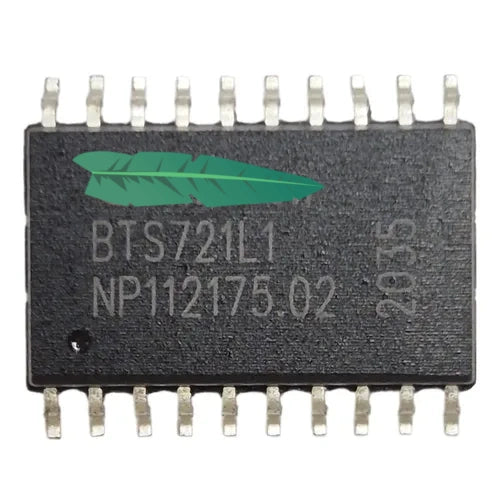

BTS721L1 – Automotive ECU Power Supply Easy-Damage Switch IC, High-Side Driver for Control Module Protection

BTS721L1 is a high-side power switch IC specifically designed for automotive electronic control units requiring reliable power distribution and fault protection.

This chip serves as an easy-damage component in the power supply path of vehicle computer boards. Its primary function is to act as a protective barrier between the vehicle battery and sensitive ECU circuits. When short circuits, overloads, or excessive temperatures occur, this IC fails first, preventing catastrophic damage to expensive main processors and memory components.

The BTS721L1 integrates smart protection features that make it a preferred choice for automotive module manufacturers and repair technicians alike. Its high-side switching configuration simplifies wiring and improves system reliability by keeping the load continuously referenced to ground.

Key features include:

    High-side switching with low on-resistance

    Built-in overcurrent and short-circuit protection

    Overtemperature shutdown with auto-restart capability

    Electrostatic discharge (ESD) protection on all pins

    Compatible with 12V and 24V automotive electrical systems

    Very low standby current for battery conservation

Common applications:

    Engine control unit (ECU) power stages

    Transmission control module (TCM) protection

    Body control module (BCM) switching circuits

    ABS and airbag module power inputs

    Aftermarket automotive ECU repair and refurbishment

For repair workshops handling dead or intermittent control modules, replacing this easy-damage switch IC is often the fastest and most cost-effective solution. It restores normal power distribution without requiring full module replacement.

Choose BTS721L1 for robust, intelligent, and reliable power switching in critical automotive electronics.
