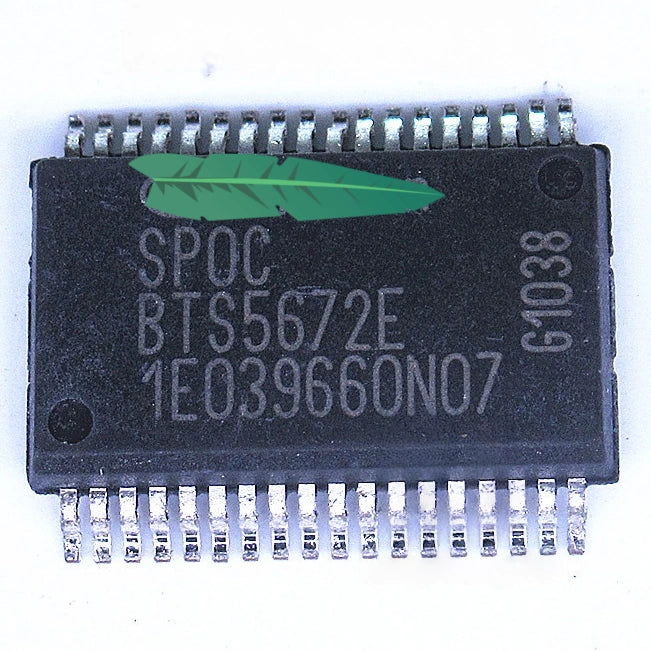

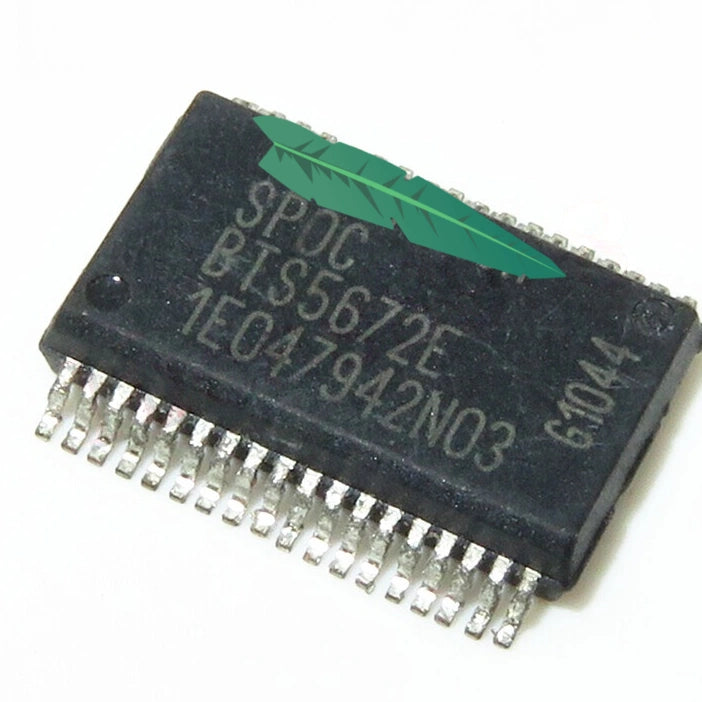

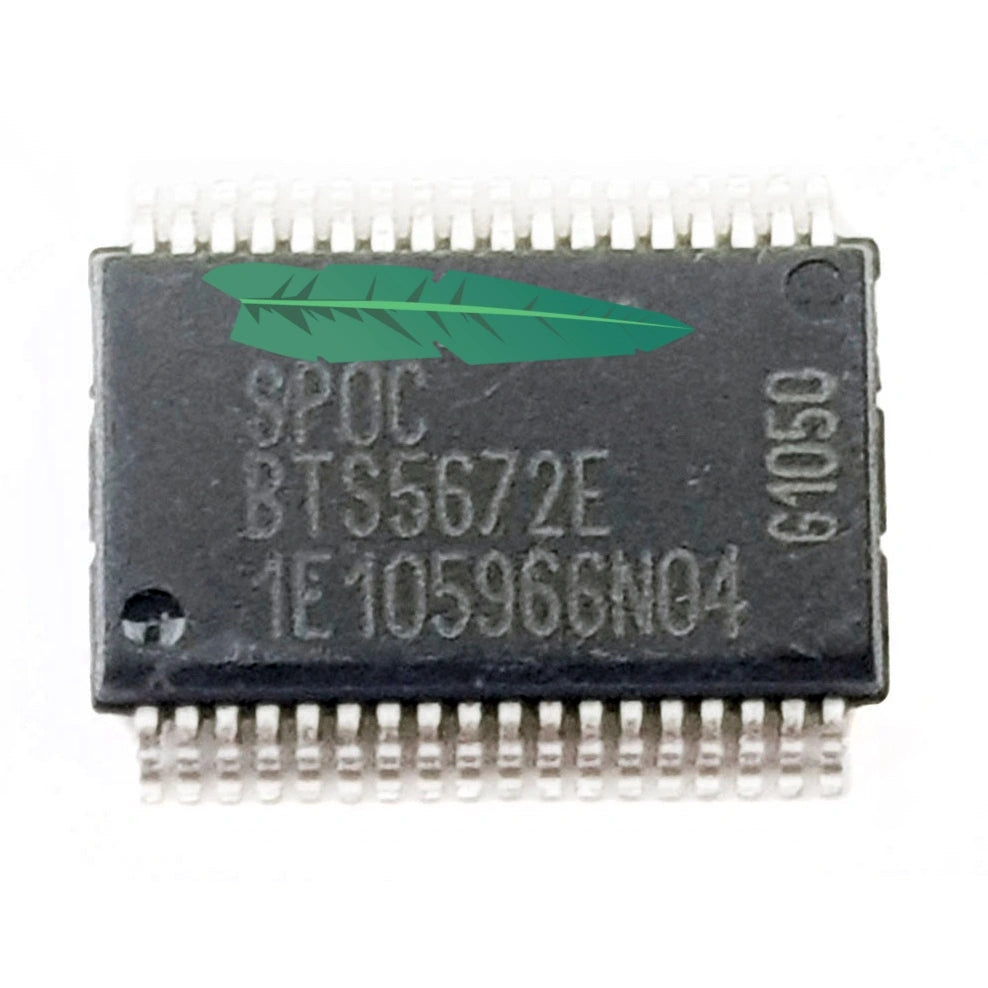

BTS5672E – High-Side Power Switch for Lighting & Common Wearable Parts, Automotive-Grade

The BTS5672E is a high-side power switch designed specifically for automotive lighting systems and common wearable load applications.

It integrates dual high-side channels, each capable of driving up to 7A continuous current.
This makes it an ideal replacement for relays and discrete circuits in harsh automotive environments.

The device features very low standby current, reducing battery drain when the system is off.
Built-in protection includes overcurrent, overtemperature, and voltage clamping for inductive loads.

Diagnostic feedback is available via current sensing, allowing the system to detect open load or short circuit conditions.
With its small PG-DSO-14 package, the BTS5672E saves PCB space while delivering high reliability.

This component is widely used in headlights, DRLs, fog lamps, interior lighting, and other common wear parts like small motors or solenoids.

Operating voltage range is 5V to 28V, supporting 12V and 24V vehicle electrical systems.
It meets AEC-Q100 automotive qualification standards, ensuring stable performance in extreme temperature ranges from -40°C to 150°C.

For lighting and general load control in modern vehicles, the BTS5672E provides a robust, smart, and compact solution.
