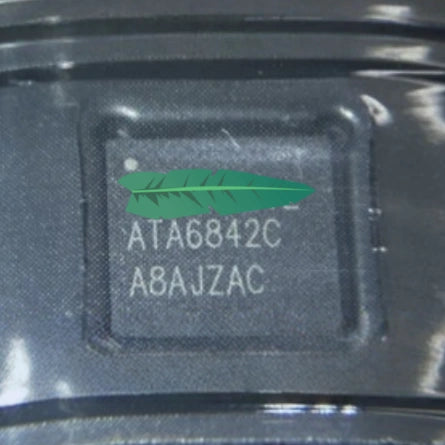

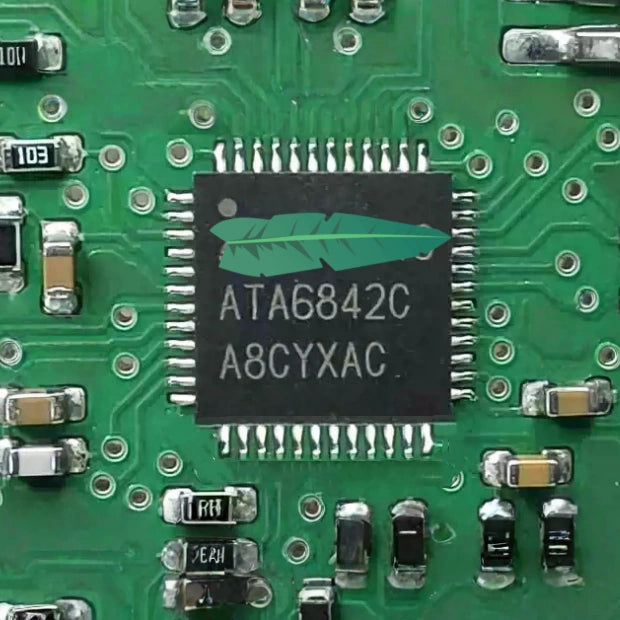

ATA6842C Automotive ECU Display & Failsafe System Driver IC with SPI Interface (QFP-48)
The ATA6842C is a monolithically-integrated multifunctional system IC designed for critical automotive electronic control units. This driver chip serves as a robust interface between the microcontroller and various external loads. It integrates multiple driver stages, voltage supplies, and comprehensive monitoring functions. This makes it an ideal cost-saving solution for failsafe system designs. The chip is built on advanced BCDMOS technology, ensuring high reliability. It handles the demanding electrical environment found in modern vehicles.
This IC features four protected and current-limited low-side driver stages. These are perfect for controlling relays, solenoids, and indicator lamps. Additionally, it includes a high-side gate driver with a charge pump. This allows for the efficient control of an external N-channel MOSFET. Three separate outputs can control LEDs for system status indication. The device communicates with the host microcontroller via a standard 8-bit SPI interface. This enables flexible configuration and real-time diagnostic readback. The SPI interface supports daisy-chaining for multiple ICs. This simplifies complex ECU board layouts and reduces wiring.
The ATA6842C is equipped with two independent 5V voltage regulators. These can power the microcontroller and external sensors. Its failsafe features are central to its design. A dedicated watchdog timer monitors the microcontroller's operation. If a malfunction is detected, the IC can take corrective action. Two differential amplifiers are included for precision current measurement applications. Two fast comparators are also provided for monitoring external sensor supplies. The chip operates over a wide automotive voltage range. It incorporates extensive protection against over-temperature and over-current. All driver outputs are disabled during undervoltage events. This protects the ECU and connected loads from damage.
The device comes in a space-saving QFP-48 package. It is suitable for automated PCB assembly. This driver IC is ideal for engine control units, body control modules, and transmission controllers. It consolidates multiple discrete functions into a single package. This reduces component count and improves system reliability. The ATA6842C meets stringent automotive-grade quality standards. Its robust design ensures consistent performance under harsh under-hood conditions. This chip is a reliable choice for high-volume production. It provides engineers with a proven solution for complex automotive system designs.
