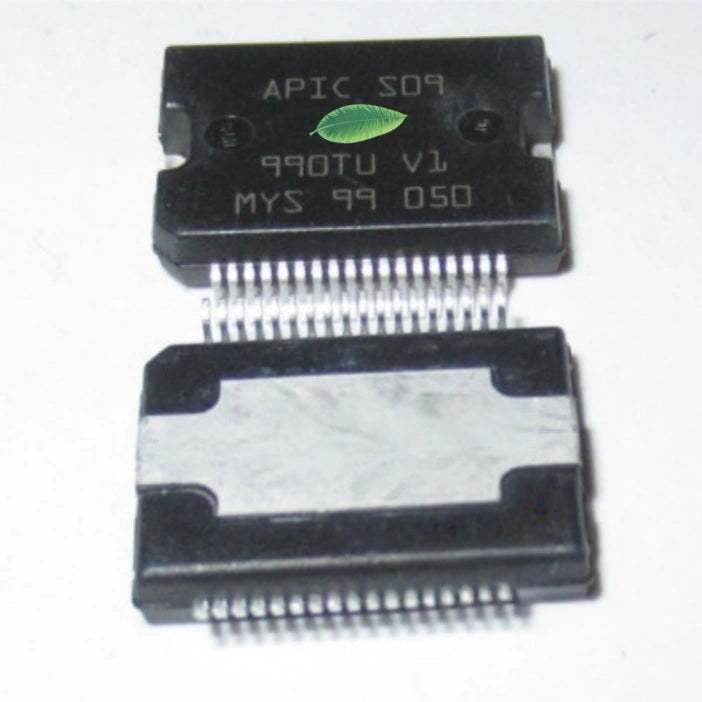

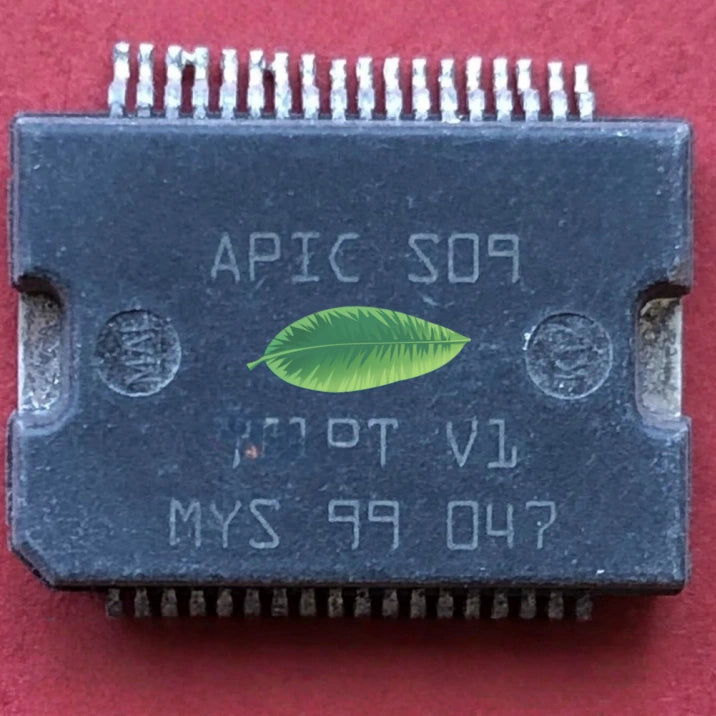

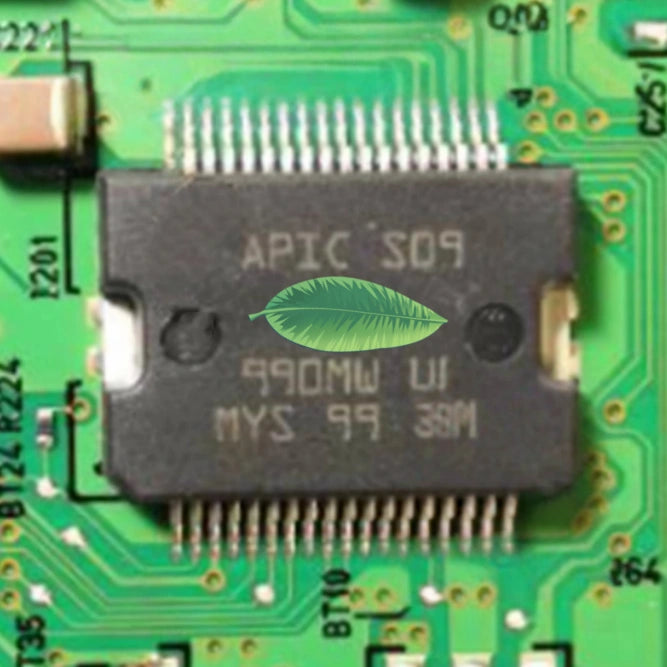

APIC-S09 – Automotive Power Management & Driver IC for Engine Control Unit & ECU Applications
The APIC-S09 is a specialized power management and driver integrated circuit designed for automotive engine control units and other critical electronic control module applications.
This device integrates multiple power regulation and load driving functions into a single compact SSOP36 package, simplifying PCB design and reducing overall system cost.
The APIC-S09 is built to withstand the harsh operating conditions found in engine compartment environments, including extreme temperatures, vibration, and electrical noise.
A wide operating temperature range from -40°C to 125°C ensures reliable performance under all driving conditions, from cold starts to high-load engine operation.
The device includes robust protection features such as overcurrent protection, overtemperature shutdown, and short-circuit protection on all output channels.
Low quiescent current in standby mode helps minimize battery drain when the ignition is off, preserving vehicle battery life.
The APIC-S09 provides stable power delivery to microcontrollers, sensors, and actuators commonly found in modern engine management systems.
Built-in diagnostic capabilities allow for real-time system monitoring and fault detection, supporting automotive functional safety requirements.
The SSOP36 package offers excellent thermal dissipation and mechanical durability for automotive assembly and long-term reliability.
This power IC is fully qualified for automotive applications, meeting stringent industry standards for quality and reliability.
Typical applications include engine control units, transmission control modules, battery management systems, and body control modules.
The APIC-S09 serves as a common replacement part for engine computer boards, addressing high-failure components in automotive electronic systems.
By integrating multiple power management and driver functions into a single device, this IC simplifies system design and improves overall reliability.
The robust design ensures stable operation even during load dump events and other voltage transients common in automotive electrical systems.
This device is suitable for 12V and 24V vehicle electrical systems, providing flexibility for various automotive platforms.
