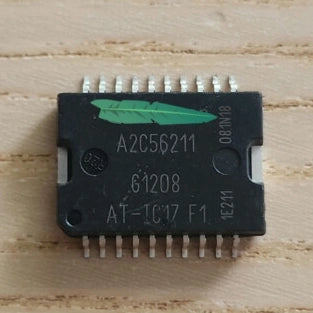

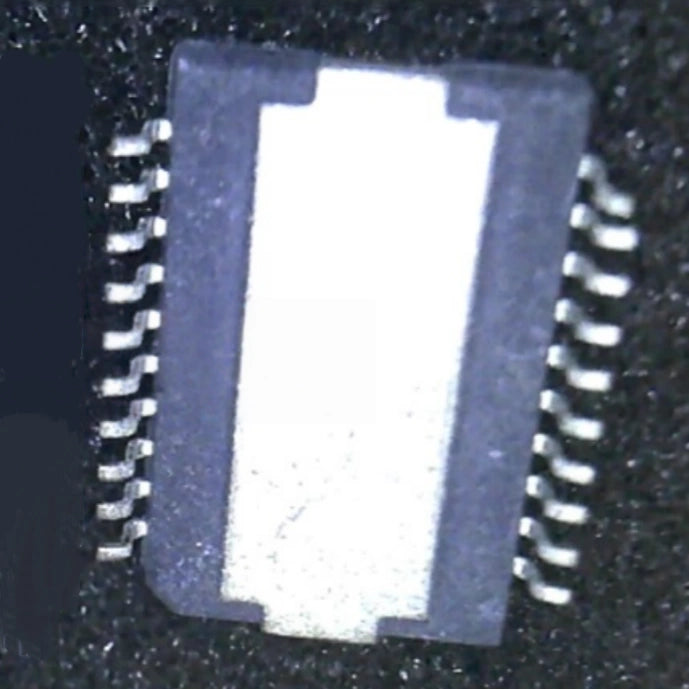

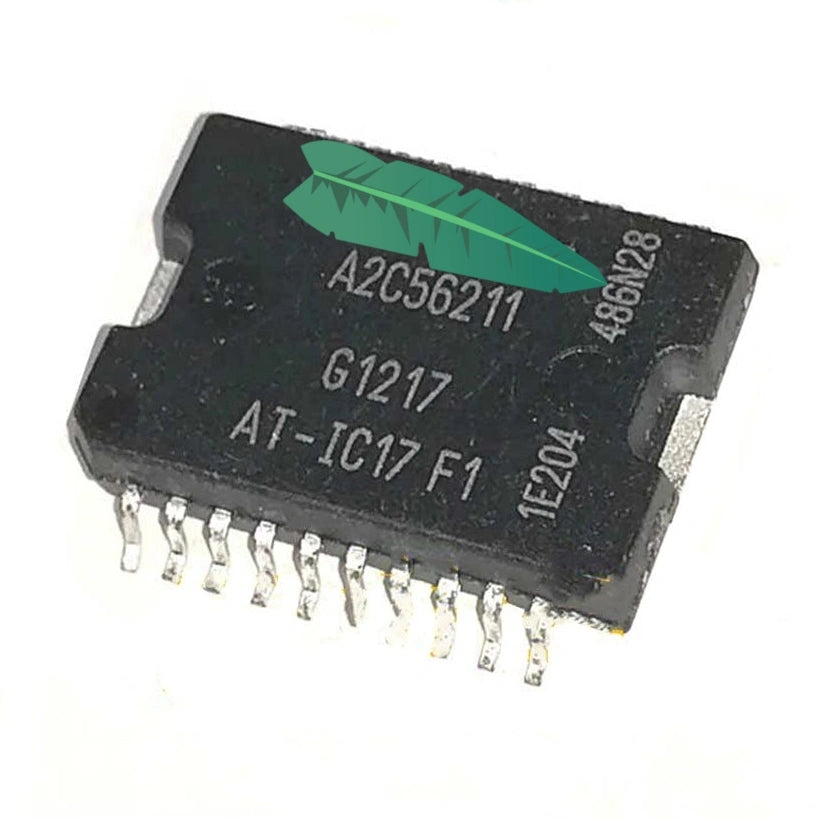

A2C56211 Power Management IC for Automotive ECU – Voltage Regulator & Supply Chip for Engine Control Boards

A2C56211 is a dedicated power management integrated circuit designed for automotive engine control units (ECUs).

It provides multiple regulated voltage rails required by microcontrollers, sensors, and communication transceivers inside the ECU.
The chip accepts battery input from 4.5V to 36V, covering both 12V and 24V vehicle electrical systems.

Integrated low-dropout (LDO) regulators deliver clean and stable outputs such as 3.3V, 5V, and other reference voltages.
A built-in switch-mode DC-DC converter handles higher current loads with excellent efficiency.

Power sequencing and reset generation ensure proper startup and shutdown of the entire control module.
The device includes overvoltage protection, undervoltage lockout (UVLO), and short-circuit current limiting.

Thermal shutdown protects the chip from overheating under excessive load or high ambient temperatures.
Very low quiescent current in standby mode helps reduce battery drain when the engine is not running.

A2C56211 also features a power-good indicator for system monitoring and fault detection.
Its compact surface-mount package fits easily on dense ECU printed circuit boards.

This power chip is an excellent replacement for failed power stages in aftermarket ECU repairs and module rebuilding.
It operates reliably across the full automotive temperature range from -40°C to +125°C.

Designed for harsh environments, it withstands load dump transients and reverse battery connections.
