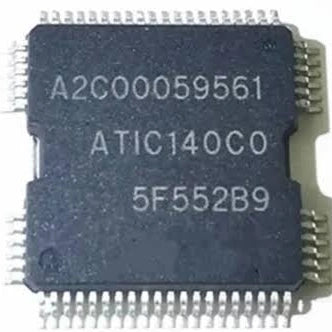

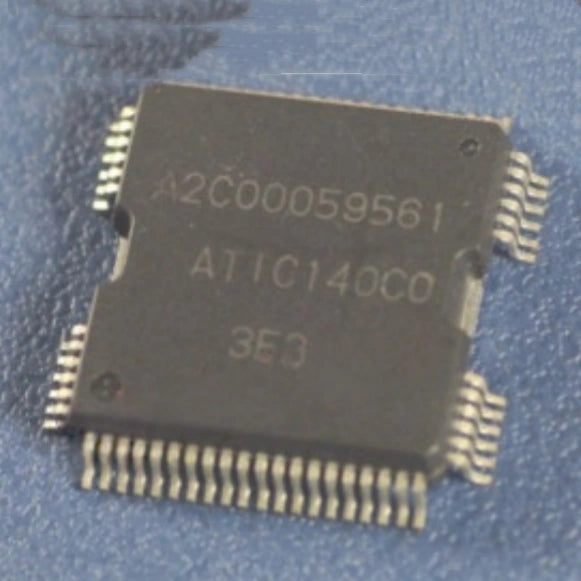

A2C00059561 Automotive Ignition Driver IC – Engine Control Unit (ECU) Power Stage for Spark & Fuel Injection Systems

The A2C00059561 is a specialized ignition driver IC designed for engine control modules in automotive powertrain systems.

This device is engineered to drive the ignition coils and fuel injectors, delivering the precise timing and current control required for optimal engine combustion.

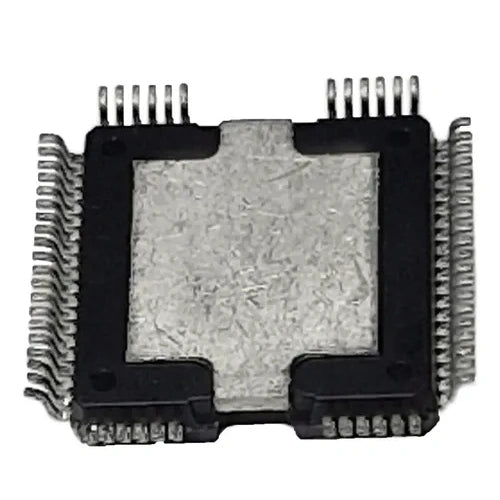

Housed in a QFP-64 package, it is optimized for high-density ECU designs while maintaining excellent thermal performance for under-hood applications.

The driver integrates multiple output stages capable of handling the high-voltage and high-current demands of automotive ignition systems.

It features advanced protection mechanisms including overcurrent shutdown, thermal monitoring, and fault detection to ensure system reliability under extreme conditions.

The built-in diagnostic feedback provides real-time status reporting to the engine control unit, enabling efficient troubleshooting and fail-safe operation.

An SPI communication interface allows the microcontroller to configure parameters and monitor the health of each output channel.

The chip supports a wide operating voltage range and is qualified for the strict temperature and durability requirements of modern vehicles.

Its robust design helps maintain consistent spark timing across varying engine speeds and loads, reducing emissions and improving fuel economy.

Additionally, the A2C00059561 is used to actuate fuel injectors with high timing accuracy, further contributing to precise air-fuel mixture control.

By replacing discrete driver circuits with this integrated solution, manufacturers can reduce PCB footprint and enhance overall system reliability.

This component is a drop-in replacement for original equipment modules, making it a valuable service part for automotive repair and maintenance.
