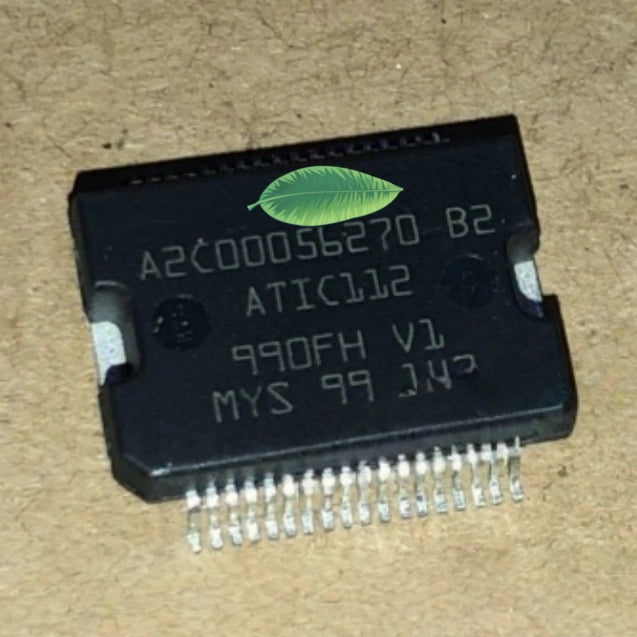

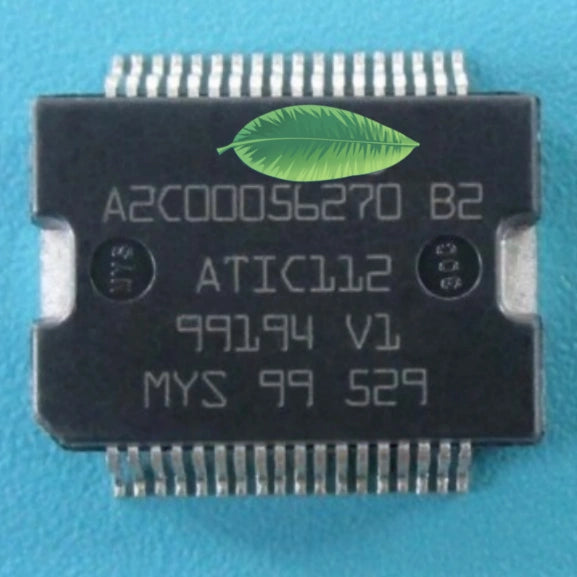

A2C00056270 - Power Management IC for Engine Control Unit (ECU), Common Failure Replacement

The A2C00056270 is a dedicated power management IC commonly found on engine control modules.

It is known as a high-failure component in many automotive ECU assemblies due to thermal and load stress.

This chip provides multiple regulated voltage outputs for microcontrollers, sensors, and actuators.

It includes built-in power sequencing and reset generation for proper ECU boot-up behavior.

Designed for 12V automotive electrical systems, including passenger cars and light commercial vehicles.

Operating temperature range from -40°C to +125°C, suitable for under-hood and transmission-mounted ECUs.

Features overcurrent, overtemperature, and short-circuit protection to prevent secondary board damage.

The device also monitors input voltage stability and triggers system reset during brown-out conditions.

Low dropout voltage design ensures efficient power conversion even during engine start cranking.

This IC is a common replacement part for ECUs experiencing intermittent power loss or no-start conditions.

It reduces external discrete regulators, saving PCB space in dense control unit layouts.

Compatible with both gasoline and diesel engine control modules from various vehicle platforms.

Direct drop-in replacement for failed original power management chips on damaged computer boards.

AEC-Q100 grade qualified, ensuring reliability in vibration, humidity, and thermal cycling.

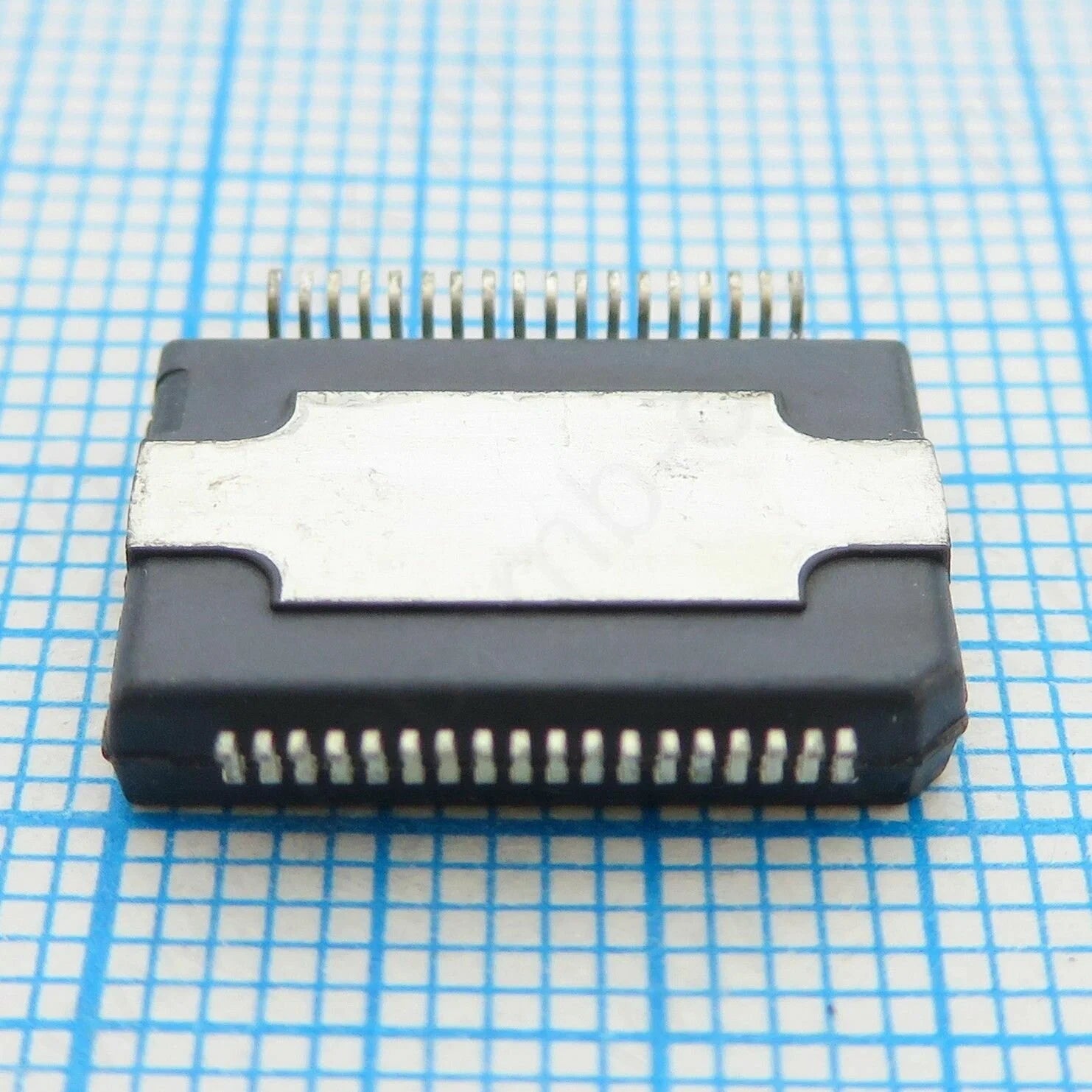

Packaged in a thermally enhanced small-outline package for automated reflow soldering.
