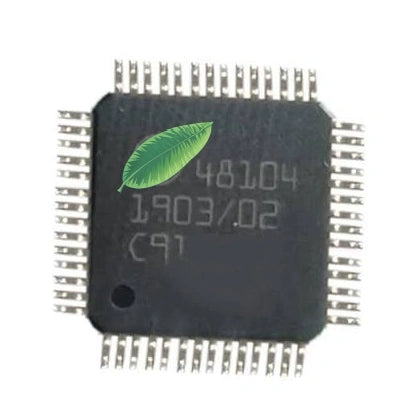

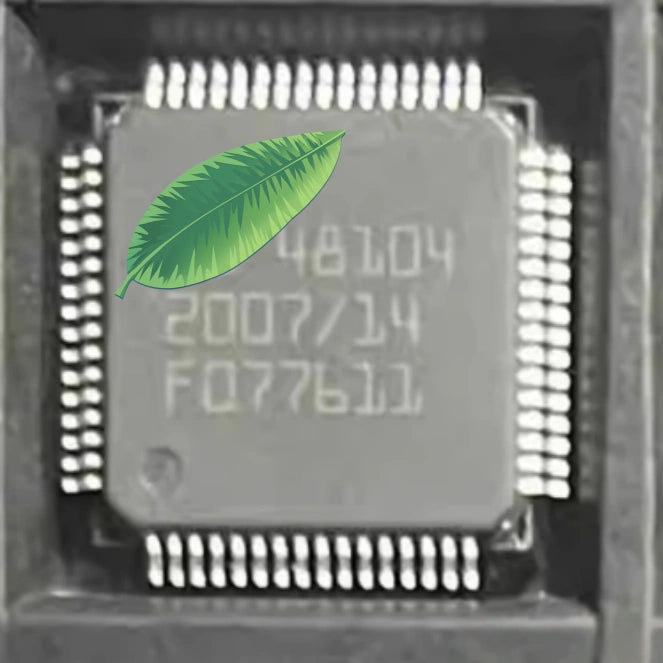

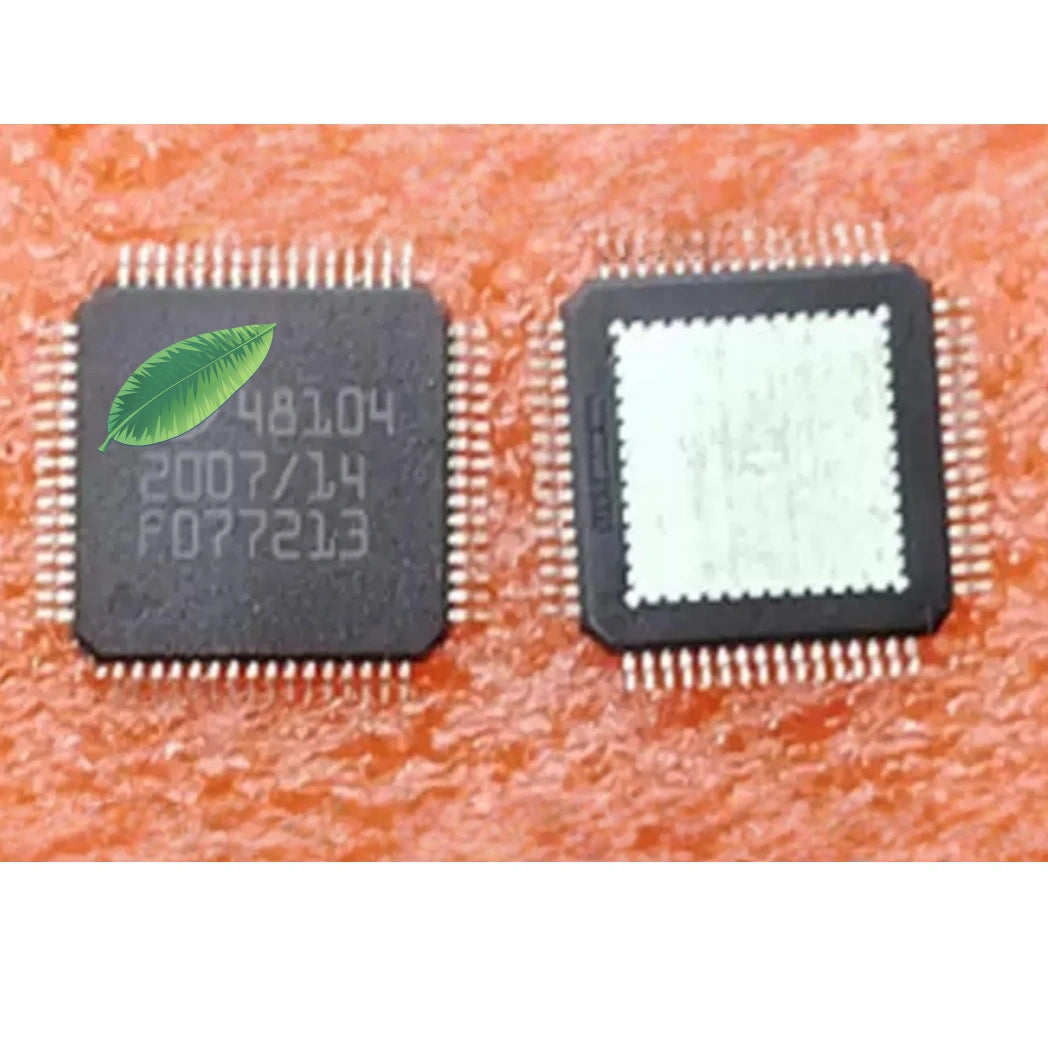

48104 Automotive Engine Control Unit Power Management IC for ECU Systems

The 48104 is a highly integrated power management integrated circuit purpose-built for automotive engine control unit and powertrain electronic systems.

This advanced IC integrates multiple low-dropout voltage regulators and a high-efficiency DC-DC converter to provide clean and stable power rails for all ECU subsystems.

The primary 5V regulator delivers ample current for the main microcontroller, while auxiliary outputs support analog sensor interfaces, communication transceivers, and memory backup circuits.

A dedicated high-voltage input stage allows direct connection to the vehicle's 12V battery system, with robust transient protection to withstand load dump and other automotive voltage spikes.

The device features precision voltage monitoring and power-on reset generation, ensuring reliable system start-up and orderly shut-down during ignition cycles.

Built-in protection circuitry includes over-temperature sensing, output short-circuit protection, and reverse-battery protection to guard against common automotive electrical faults.

The 48104 incorporates a low-power standby mode that reduces current draw to microampere levels, minimizing battery drain when the engine is off.

An integrated watchdog timer continuously monitors the external microcontroller, generating a system reset if the software execution becomes abnormal or halted.

This power chip also provides diagnostic feedback through a dedicated status output, alerting the ECU to any power supply anomalies in real time.

Designed and qualified for the full automotive temperature range, the 48104 maintains precise regulation even under extreme cold-start and high-temperature driving conditions.

The compact thermally-enhanced package supports efficient heat dissipation, enabling reliable operation without the need for large external heatsinks.

By integrating essential power, monitoring, and protection functions into one monolithic solution, this IC significantly reduces PCB area and bill-of-material costs for ECU designers.
