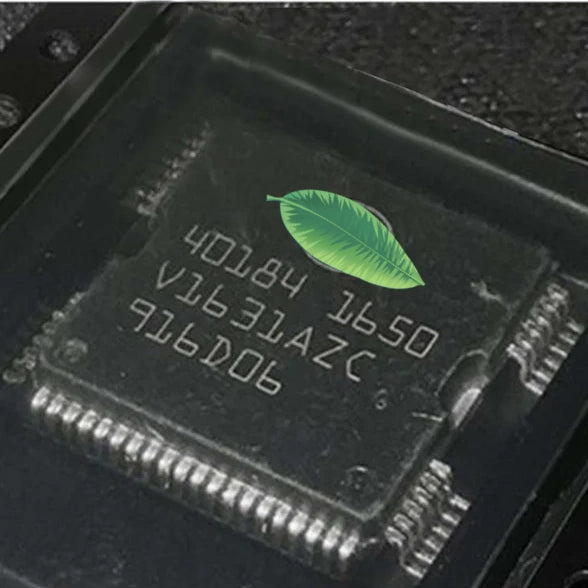

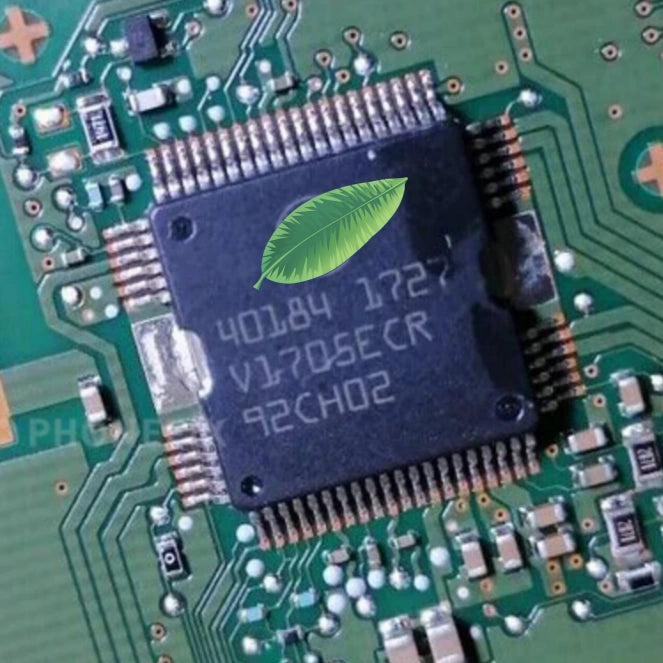

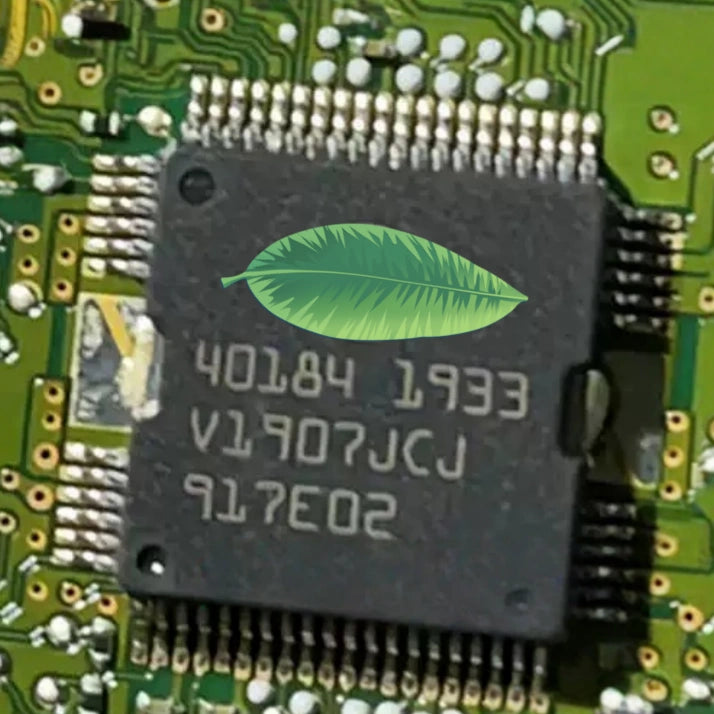

40184 Automotive Fuel Injector Driver IC – High-Side/Low-Side Engine Control Unit (ECU) Chip for Precise Solenoid & Relay Control

The 40184 is a sophisticated and highly integrated monolithic driver IC, specifically engineered to meet the rigorous demands of modern automotive engine control units (ECUs).

This advanced chip provides a comprehensive solution for driving a variety of inductive loads found under the hood, including fuel injectors, solenoids, lamps, and relays.

Its architecture integrates four robust low-side drivers alongside four versatile gate pre-drivers, delivering exceptional flexibility for complex engine management systems.

Designed for precision, the 40184 supports direct parallel input control as well as a 3.3V/5.0V SPI protocol, enabling seamless communication with the main microcontroller.

For injector drive applications, this chip implements a sophisticated peak-and-hold current control strategy. It initially saturates the driver to deliver a high "peak" current to quickly open the injector, then automatically reduces it to a lower "holding" current to keep it open, which drastically reduces power consumption and heat generation.

The IC also integrates essential protection and diagnostic features, including short-circuit protection and independent fault reporting for each channel, which significantly enhances system reliability.

Furthermore, the 40184 features high impedance inputs and is designed to operate over a wide supply voltage range, making it particularly robust against the voltage dips experienced during engine "cold crank" conditions.

Its high level of integration simplifies PCB design, reduces board space, and ensures consistent, reliable performance in the harsh automotive environment.
