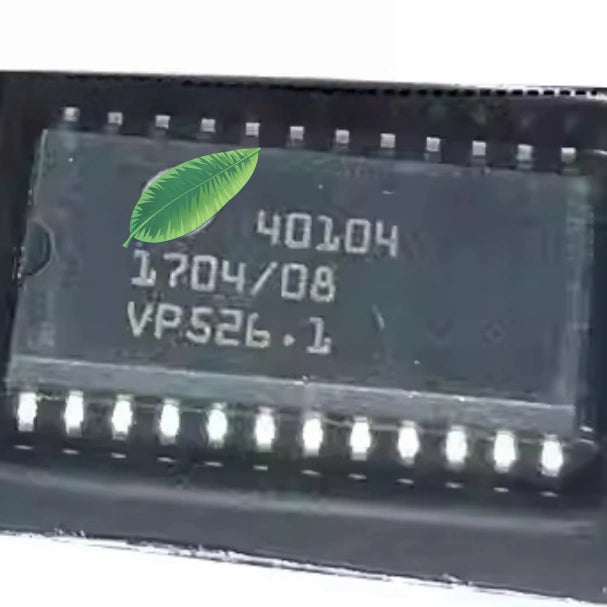

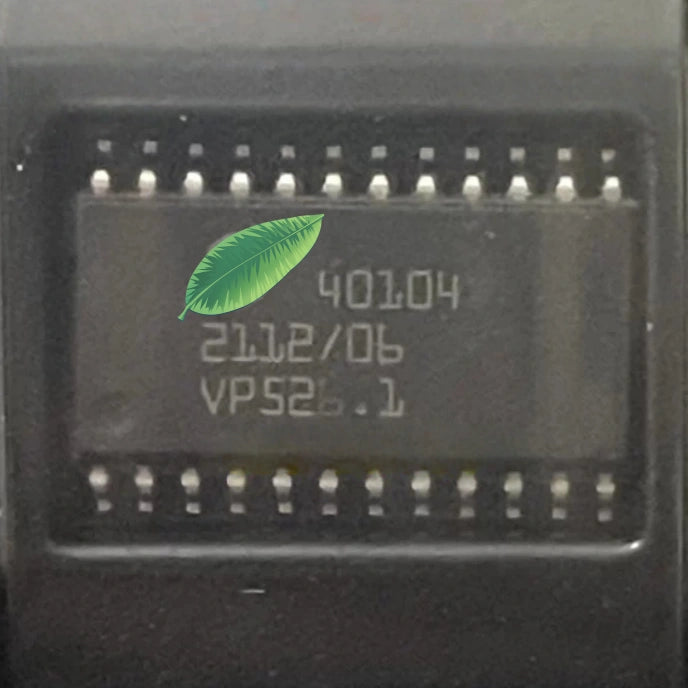

40104 4-Bit Bidirectional Shift Register IC – 3-State Logic for Automotive ECU Signal Routing
The 40104 series is a high-performance 4-bit bidirectional universal shift register integrated circuit, designed for data manipulation and signal routing within automotive electronic systems. This logic IC is a vital component found in various Engine Control Units (ECUs) and body control modules, where it manages the flow of digital signals across the vehicle's network.
Core Logic Function & Application:
This device is configured as a 4-bit parallel-in/parallel-out shift register with a bidirectional counting capability. It allows for versatile data movement, performing both shift-left and shift-right operations synchronously on the positive clock edge. This capability is essential for tasks such as data buffering, serial-to-parallel conversion, and implementing delay lines in automotive control algorithms. In ECU board-level repairs, this IC is a known replacement part for failed logic stages that manage critical communication between the microcontroller and peripheral drivers.
Technical Specifications & Signal Integrity:
The 40104 operates across a broad supply voltage range, typically from 3V to 18V, making it compatible with 5V and 12V automotive logic systems. It features a standard 50pF load capacitance and is built on CMOS technology for low power consumption. The device is characterized by a robust propagation delay, with variants capable of operating up to 67 MHz, ensuring reliable performance in time-sensitive automotive circuits.
Output & Interface Features:
A key feature of this IC is its 3-state output capability, which allows the outputs to be effectively disconnected from the circuit. This high-impedance state is critical for bus-organized systems, preventing data collisions and enabling multiple devices to share the same data lines. The true output polarity ensures accurate signal representation, while the positive-edge trigger provides predictable and stable logic transitions.
Environmental Durability & Repair Value:
Built to withstand demanding conditions, this IC maintains stable operation across an automotive temperature range of -40°C to +125°C. For ECU repair technicians, the 40104 offers a direct, drop-in replacement for damaged logic components, restoring full signal routing functionality to the engine control unit without the need for expensive module replacement.
