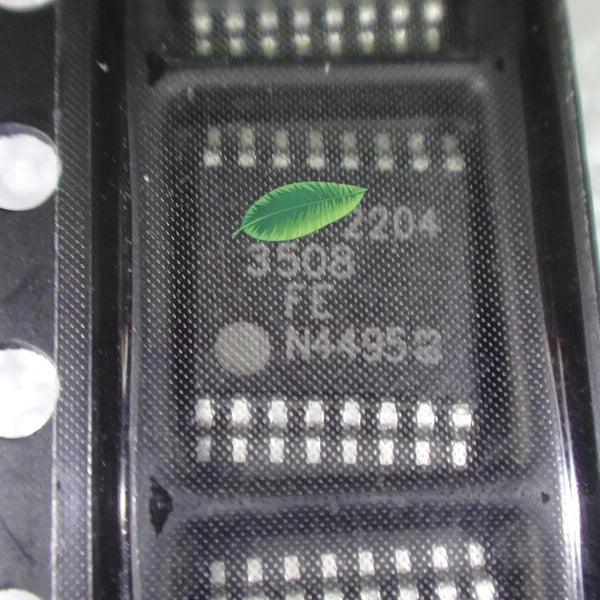

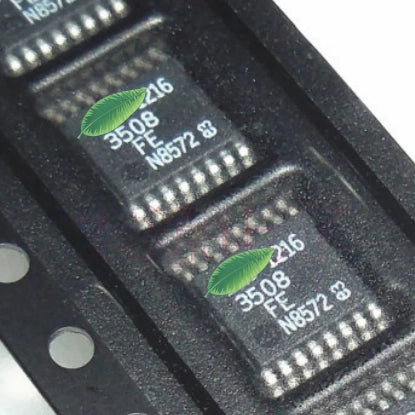

3508FE Step-Down Switching Regulator IC for Automotive Instrument Cluster and ECU Power Systems
The 3508FE is a high-performance step-down switching regulator integrated circuit purpose-built for automotive instrument cluster modules, engine control units, and other vehicle electronic systems requiring efficient DC-DC conversion.
This advanced buck converter IC accepts a wide input voltage range, making it capable of handling the typical 12V automotive battery supply as well as the voltage fluctuations and transients common in vehicle electrical environments.
The device delivers a precisely regulated output voltage with excellent line and load regulation characteristics, ensuring stable power delivery to sensitive microcontroller, display, and sensor circuits.
High conversion efficiency is achieved through advanced switching architecture and low on-resistance internal power MOSFETs, significantly reducing power dissipation and improving overall system thermal performance.
This high efficiency is particularly valuable in instrument cluster applications where excessive heat generation can compromise display reliability or accelerate component aging.
The 3508FE incorporates a complete set of protection features to ensure robust operation under fault conditions, including cycle-by-cycle current limiting, over-voltage protection, under-voltage lockout, and thermal shutdown with automatic recovery.
An internal soft-start circuit limits inrush current during power-up, preventing excessive stress on the input supply and minimizing voltage droop on the main battery line.
The switching frequency is optimized to balance efficiency and external component size, allowing the use of compact inductors and ceramic capacitors while avoiding interference with sensitive AM/FM radio bands.
This automotive-grade regulator is designed and qualified for reliable operation across the full -40°C to +125°C temperature range, suitable for both interior dashboard installations and under-hood ECU applications.

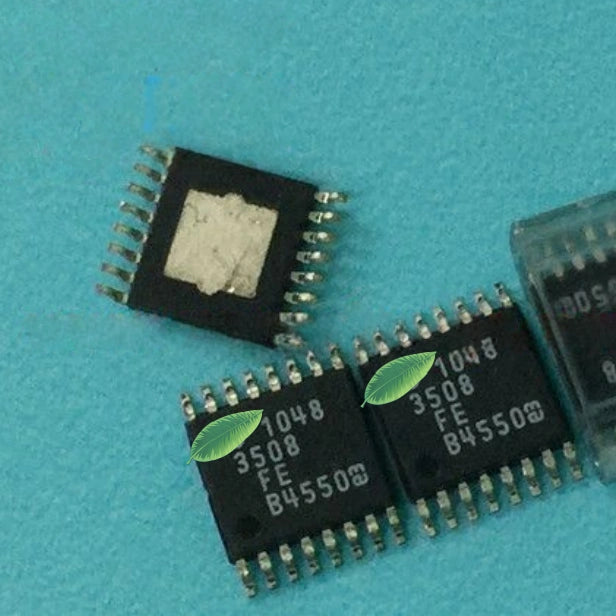

The device is available in a thermally efficient surface-mount package with an exposed thermal pad for effective heat sinking through the PCB copper plane.
Flexible output voltage options allow the 3508FE to be configured for various system requirements, whether powering 5V microcontrollers, 3.3V logic circuits, or other specific voltage needs.
By delivering high efficiency, reliable protection, and compact design in a single IC, this switching regulator provides an ideal power solution for automotive electronic modules demanding dependable performance in space-constrained environments.
